100-Days-Of-DevOps-Challenge-KodeKloud

Jenkins Database Backup Job

There is a requirement to create a Jenkins job to automate the database backup. Below you can find more details to accomplish this task:

Click on the Jenkins button on the top bar to access the Jenkins UI. Login using username admin and password Adm!n321.

1. Create a Jenkins job named database-backup.

2. Configure it to take a database dump of the kodekloud_db01 database present on the Database server in Stratos Datacenter, the database user is kodekloud_roy and password is asdfgdsd.

3. The dump should be named in db_$(date +%F).sql format, where date +%F is the current date.

4. Copy the db_$(date +%F).sql dump to the Backup Server under location /home/clint/db_backups.

5. Further, schedule this job to run periodically at */10 * * * *(please use this exact schedule format).

Note:

• You might need to install some plugins and restart Jenkins service. So, we recommend clicking on Restart Jenkins when installation is complete and no jobs are running on plugin installation/update page i.e update centre. Also, Jenkins UI sometimes gets stuck when Jenkins service restarts in the back end. In this case please make sure to refresh the UI page.

• Please make sure to define you cron expression like this */10 * * * * (this is just an example to run job every 10 minutes).

• For these kind of scenarios requiring changes to be done in a web UI, please take screenshots so that you can share it with us for review in case your task is marked incomplete. You may also consider using a screen recording software such as loom.com to record and share your work.

Steps

1. Update plugins and restart jenkins
2. Install the following plugin
   • SSH Credential
   • Publish Over SSH

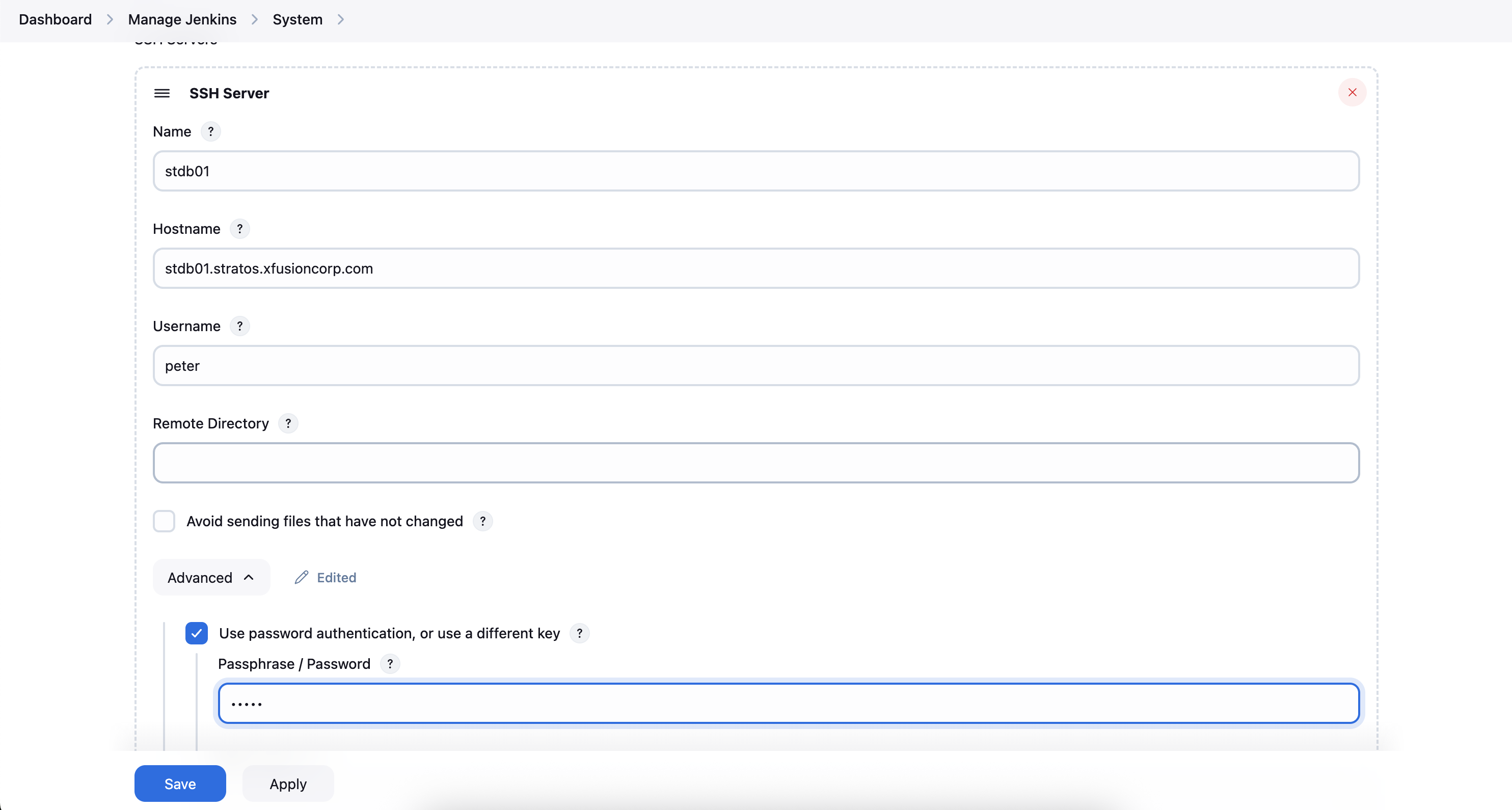

3. Go to Manage Jenkins > System > Add SSH servers > Apply:



4. Create a freestyle job named: database-backup:

   • Check build periodically and add this cron job: */10 * * * *
   • Add build step > Send files or execute commands over ssh > add this lines in execute command:

    mkdir -p /tmp/db-backup
    mysqldump -u kodekloud_roy -p'asdfgdsd' kodekloud_db01 > /tmp/db-backup/db_$(date +%F).sql

    ls -la
    sudo apt install sshpass -y

    sshpass -p 'H@wk3y3' scp -o StrictHostKeyChecking=no /tmp/db-backup/*.sql clint@stbkp01:/home/clint/db_backups

    rm -rf /tmp/db-backup


   It will create dump, transfer to backup and remove the backup from db server

5. Build job

Good to Know?

Database Backup Automation

• Regular Backups: Scheduled database dumps for data protection
• Disaster Recovery: Quick recovery from data loss
• Point-in-time Recovery: Restore to specific time
• Compliance: Meet data retention requirements

MySQL Backup Tools

• mysqldump: Logical backup tool (SQL statements)
• mysqlpump: Parallel backup utility
• Percona XtraBackup: Physical backup tool
• Binary Logs: Point-in-time recovery capability

Backup Best Practices

• Consistent Naming: Use timestamps in backup filenames
• Remote Storage: Store backups on separate servers
• Compression: Reduce backup file size
• Encryption: Encrypt sensitive database backups
• Testing: Regularly test backup restoration

Jenkins Backup Jobs

• Scheduled Execution: Automated backup scheduling
• Error Handling: Notification on backup failures
• Retention Policy: Automatic cleanup of old backups
• Monitoring: Track backup success and file sizes

Youtube Video

Watch the video tutorial: https://youtu.be/KDHXdmdH0nM
